| Mixer Type | 6-channel |
|---|---|
| Digital Signal Processor (DSP) | Yes, 16 DSP alternative selections. |
| Bluetooth Function | Yes, able to connect to variety smart phones. |
| USB Input with MP3 Playback | Yes, CH6/CH7: Low/Mid/High can control USB/BT |
| USB Recording Function | Yes |
| Aluminium Side Panel | No |
| Built-in Flight Case | No |
| Built-in Layer Servo Fan | Single layer |
| Rack Mounted | No |
| Output Power | 2 x 250 Watts (4Ω) |
|---|---|
| Digital Signal Processor (DSP) | 16 DSP alternative selector |
| Balanced Mono Mic / Line Channel | 6 balanced mono mic / line channel for highest signal integrity |
| TAPE / AUX Input | 1 TAPE input (L/R) RCA connector |
| Channels Section | Gain, High, Mid, Low, Aux 1, Aux 2, Fx, Pan |
| Inserts | N/A |
| Ultra-Musical Band EQ Channel | Ultra-musical 3-band EQ channel on all mono channel |
| Frequency Control on Mono Channel | N/A |
| 80Hz High Pass Filter | Yes, to eliminate stage rumbling |
| Peak LED Indicator | Yes, Peak/ Overload (OL) LED indicator on all mono channel |
| 48V Phantom Power | Yes, for ultra low noise discrete mic pre-amps with +48V phantom power |
| Segment Bargraph Meters | High accuracy 10 segment bargraph meters for main L/R output |
| Volume Control | 60mm fidelity fader |
| Stereo Graphic Equalizer | 1 x 7 band graphic EQ provide flexible sound-tailoring & feedback control |
| Monitor Out | N/A |
| Phone Jack | 1 1/4" phone jack output |
| Phone & Monitor Level Control | Single volume control |
| Master Ouput | 6-Channel Digital Signal Processor (DSP) Powered Mixer |
| Group Output | 1-channel group output |
| AUX Send & AUX Return | 2-AUX send and 1-AUX return for external effects and monitoring |
| Record Out | 1-TAPE out (L/R) jack to deliver the main program signal to external recorder |

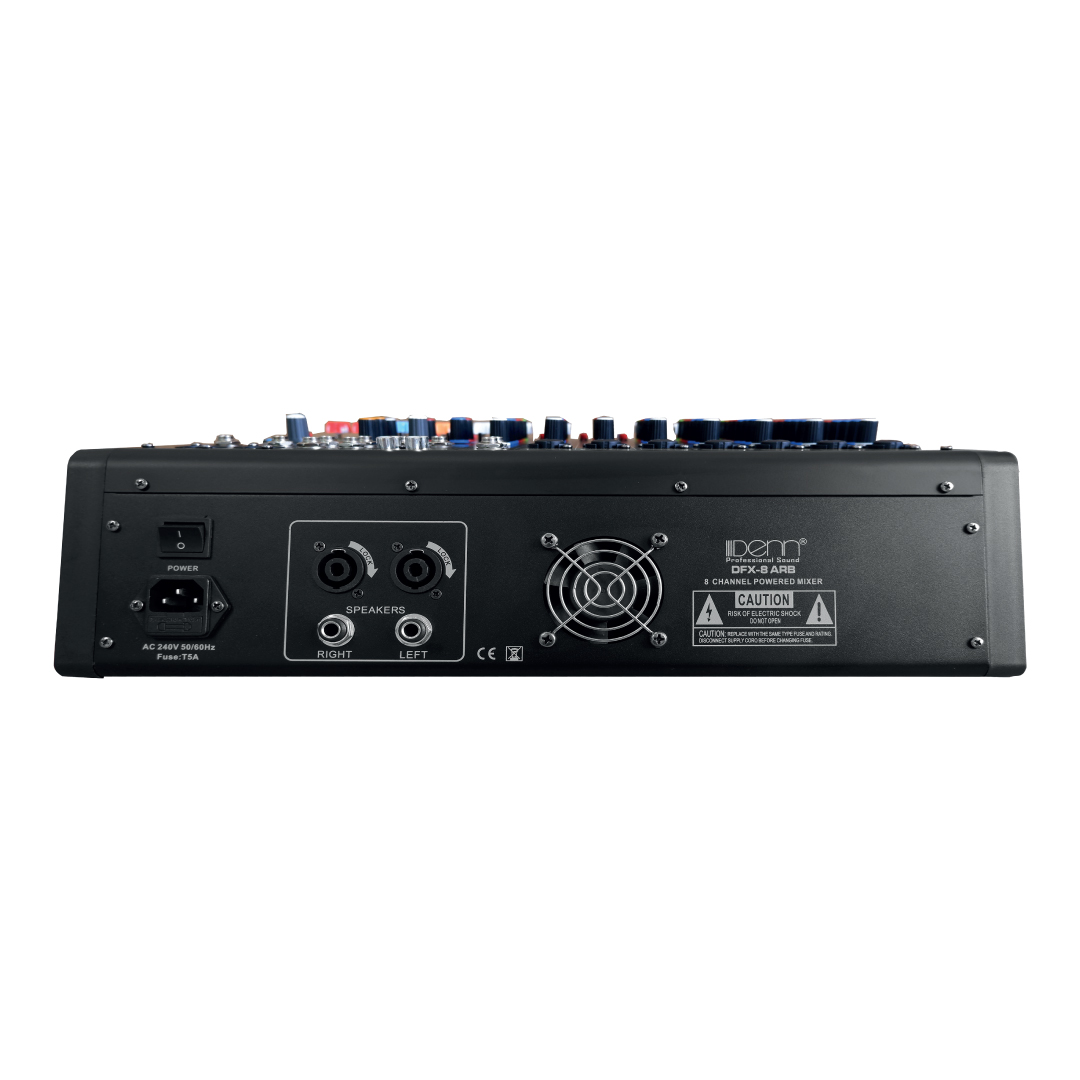

| Speaker Output | 2-speaker output (L/R) with speakon connector and 1/4" mono jack output |
| Frequency Response | 20Hz-20kHz |
| Product Dimension (W x H x D) | 385mm x 120mm x 360mm |
| Packing Dimension (W x H x D) | 447mm x 188mm x 440mm |
| Weight | 7.3kg |
| Set per Carton | 2 sets per carton |
