| Enclosure - Material | 18mm Wave-shaped Birch Plywood Enclosure |
|---|---|
| Enclosure - Colour | Environment protected black lacquer covering |
| Enclosure - Grille | Harden spray covering round steel grille |
| Enclosure - Painting / Laminating Material | High intensity with solid black surface paint treatment to protect the speaker from any type of weather |
| Rated Power | 400 Watts (RMS), 800 Watts (Peak) |
|---|---|
| Maximum SPL | 124dB |
| Nominal Impedance | 8Ω |
| Frequency Response | 58Hz - 20kHz (±3dB) |
| Sensitivity | 97dB SPL (1W@1M) |
| Driver - Low Frequency | 12” 65mm, 156mm Magnet |
| Driver - High Frequency | 1.40” 34mm |

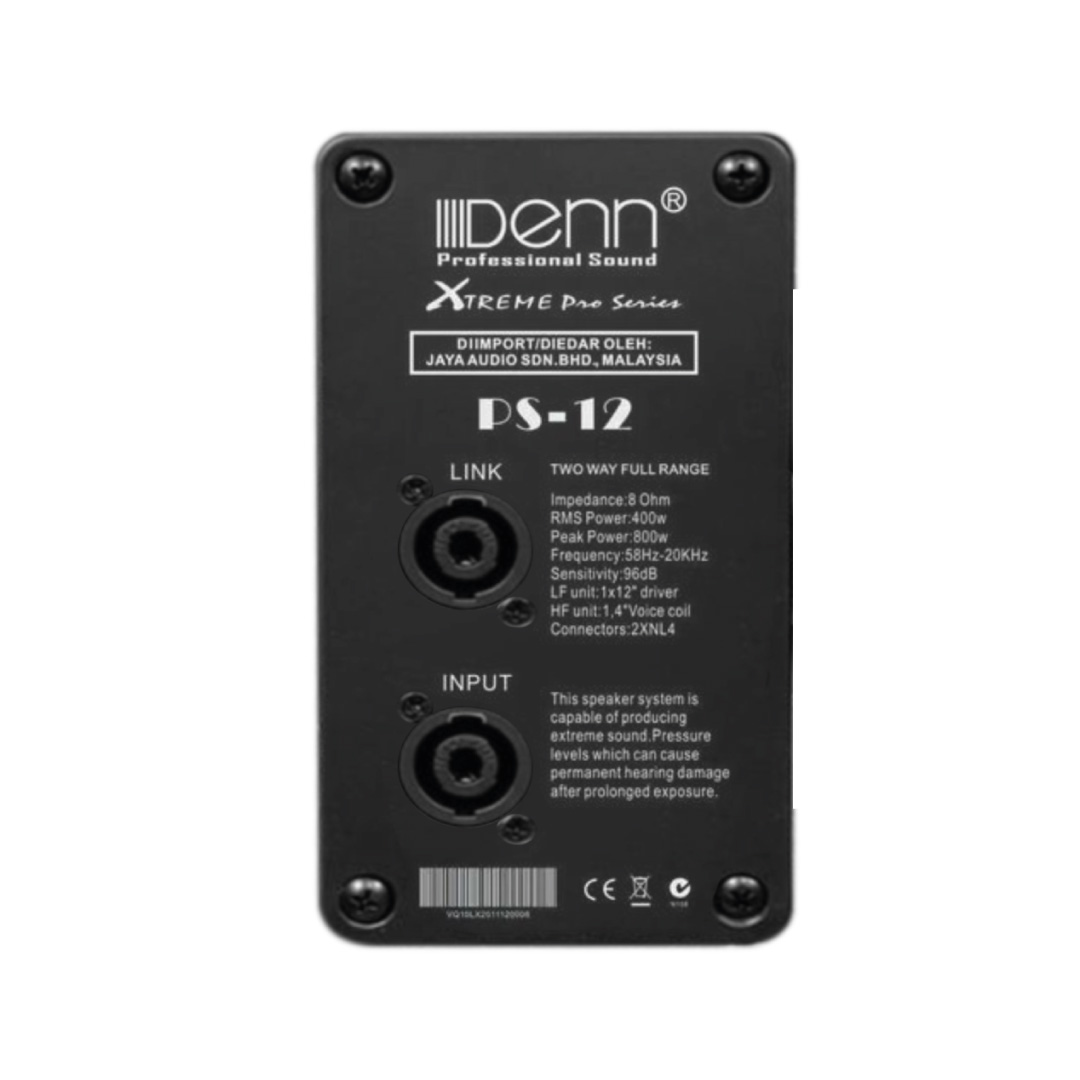

| Connectors | 2 speakon NL4 (+1/-1) or AP6 |
| Coverage | 85" horizontal, 50" vertical |
| Product Dimension (W x H x D) | 375mm x 600mm x 330mm |
| Packing Dimension (W x H x D) | 460mm x 720mm x 440mm |
| Net Weight / Gross Weight | 20.0kg/22.0kg |
| Set per Carton | 1pc per carton or 2 cartons per pair |
