| Enclosure - Material | 18mm Wave-shaped Birch Plywood Enclosure |
|---|---|
| Enclosure - Colour | Environment protected black lacquer covering |
| Enclosure - Grille | Harden spray covering round steel grille |
| Enclosure - Painting / Laminating Material | High intensity with solid black surface paint treatment to protect the speaker from any type of weather |
| Rated Power | 500 Watts (RMS), 1000 Watts (Peak) |
|---|---|
| Maximum SPL | 126dB |
| Nominal Impedance | 8Ω |
| Frequency Response | 55Hz - 20kHz (±3dB) |
| Sensitivity | 99dB SPL (1W@1M) |
| Driver - Low Frequency | 15” 75mm, 170mm Magnet |
| Driver - High Frequency | 1.75” 44mm |

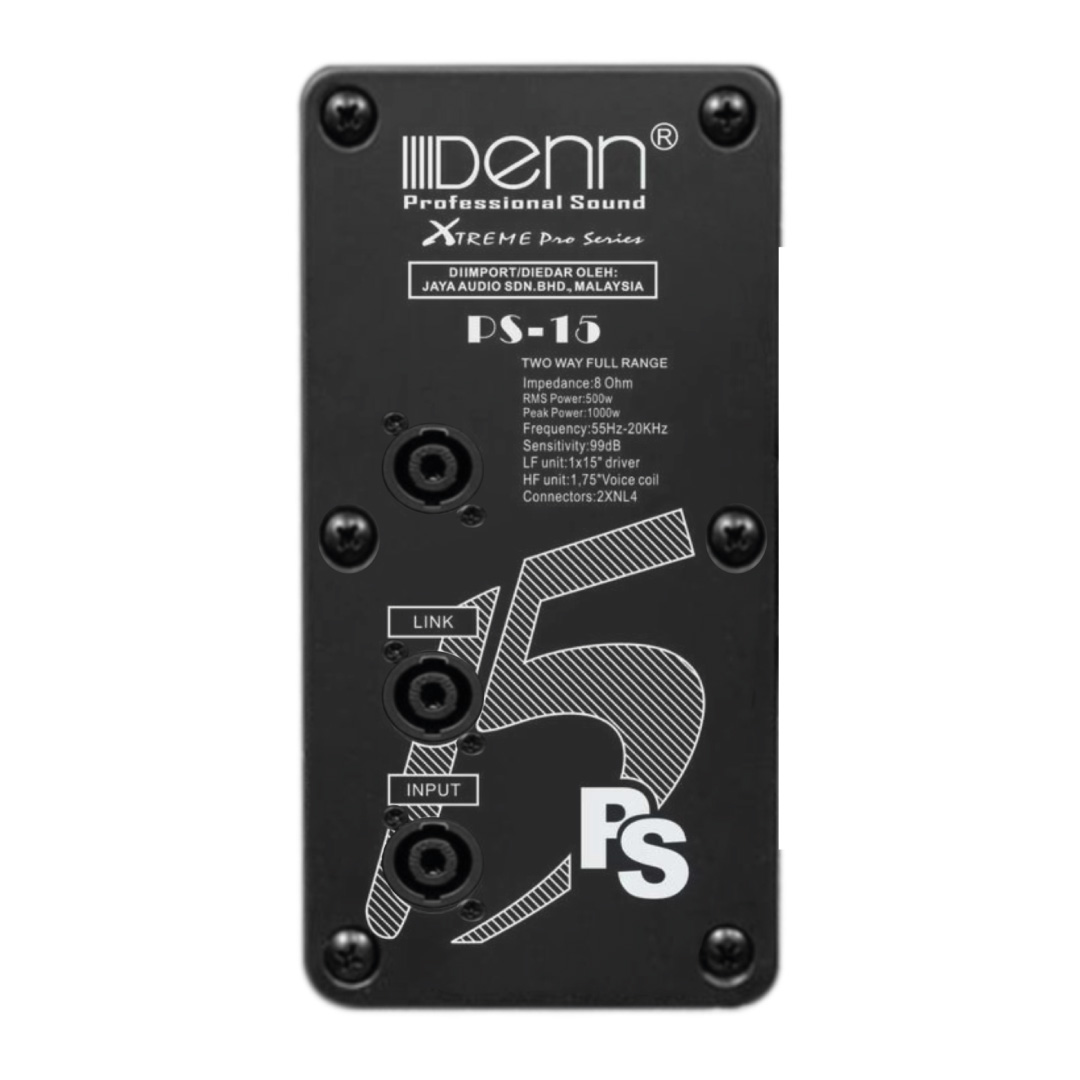

| Connectors | 3 speakon NL4 (+1/-1) or AP6 |
| Coverage | 85" horizontal, 50" vertical |
| Product Dimension (W x H x D) | 465mm x 720mm x 370mm |
| Packing Dimension (W x H x D) | 520mm x 780mm x 460mm |
| Net Weight / Gross Weight | 27.0kg/29.0kg |
| Set per Carton | 1pc per carton or 2 cartons per pair |
