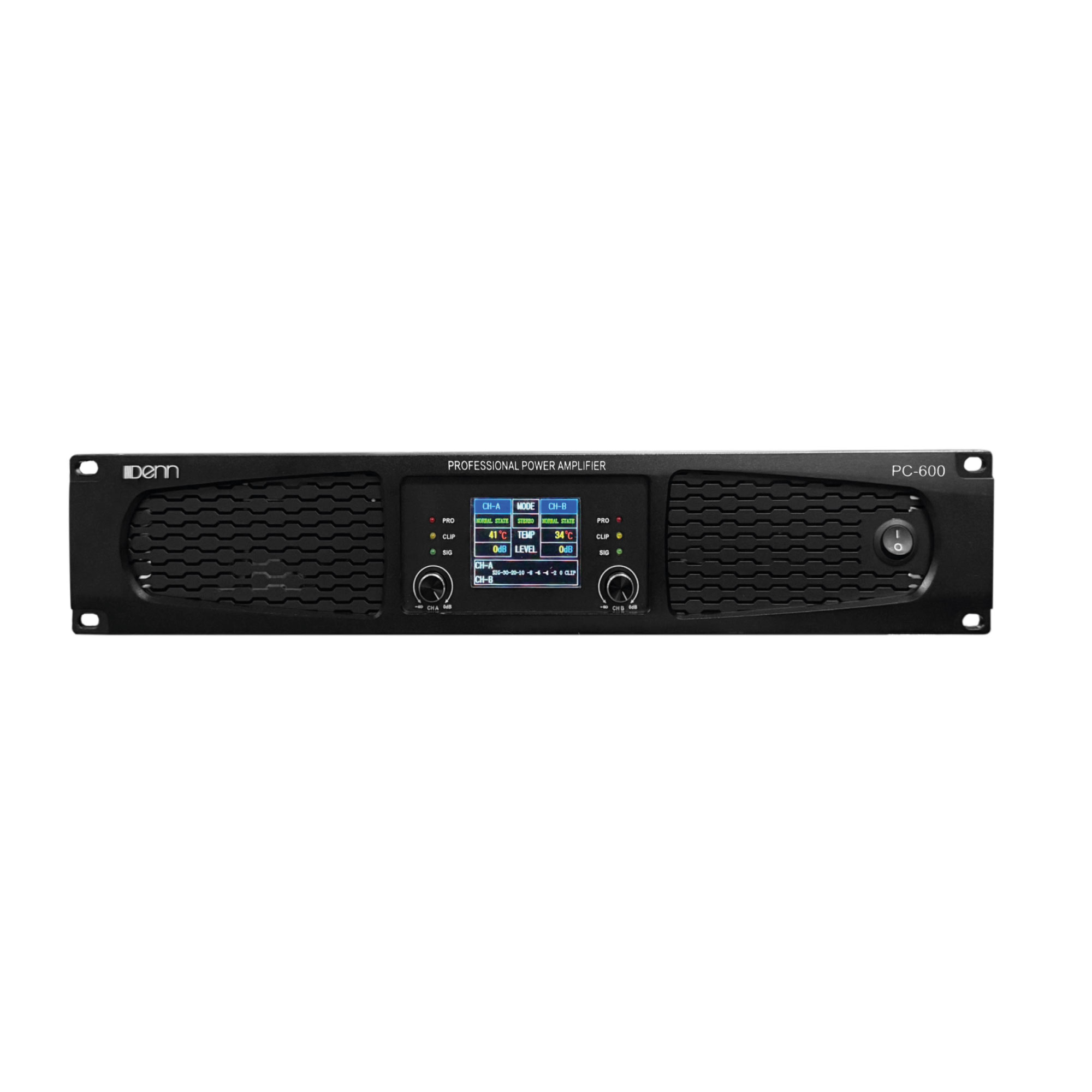

PC-6002-Channel Power Amplifier with Built-In Crossover |
||
Features |
||
|---|---|---|
| Type of Power | Transformer Power Amplifier | |
| Mounting | 2U | |
| LCD Display | Yes | |
| Protection Function | Clipping pressure limit, overheat protection, short circuit protection, long term output power limit, DC protection | |
| Ground Switch | Yes | |
| Switching Mode | Bridge, Parallel & Stereo | |
| Input Sensitivity Switch | 0db/1V | |
| Ventilation Fan | Yes | |
| Low Cut VR at Front Panel | Yes | |
| Crossover VR at Front Panel | Yes | |
| Phase VR at Front Panel | N/A | |
Specifications |
||
| Output Power | 2x600W 8Ω 2x945W 4Ω | |
| Bridge Output Power (RMS) | 1600W 8Ω | |
| Frequency Response | 20Hz-20kHz, ±0.15dB | |
| Signal to Noise Ratio | >105 dB | |
| Total Harmonic Distortion | >0.01% | |
| Damping Factor | >200@8Ω | |
| Crosstalk | >70dB@8Ω 1KHz | |
| Slew Rate | >20V/ us | |
| Input Sensitivity | >20V/ us 0db/1V | |
| Input Impedance | 20kΩ | |
| Voltage Gain (8Ω) | 37.2dB | |
| Output Circuitry | Class A&B | |
| Air Cooling Direction | Air flow from rear to front | |
| AC Input | 240V 50/60Hz | |
| Panel Indicator | N/A | |
| Front Panel Function | Power switch, volume control | |
| Back Panel Function | Built-in Crossover Control (Lowcut, Subwoofer, Off), Mode Switch | |
| Mode Selection | Bridge, Parallel & Stereo | |
| Input Connectors | XLR plug connector | |
| Output Connectors | Banana plug and speakon plug connector | |
| Product Dimension (W x H x D) | 430mm x 88mm x 480mm | |
| Packing Dimension (W x H x D) | 597mm x 135mm x 570mm | |
| Net Weight / Gross Weight | 20.0kg/21.0kg | |
| Set Per Carton | 1 set per carton | |
|
