| Type of Power | Transformer Power Amplifier |
|---|---|
| Mounting | 2U |

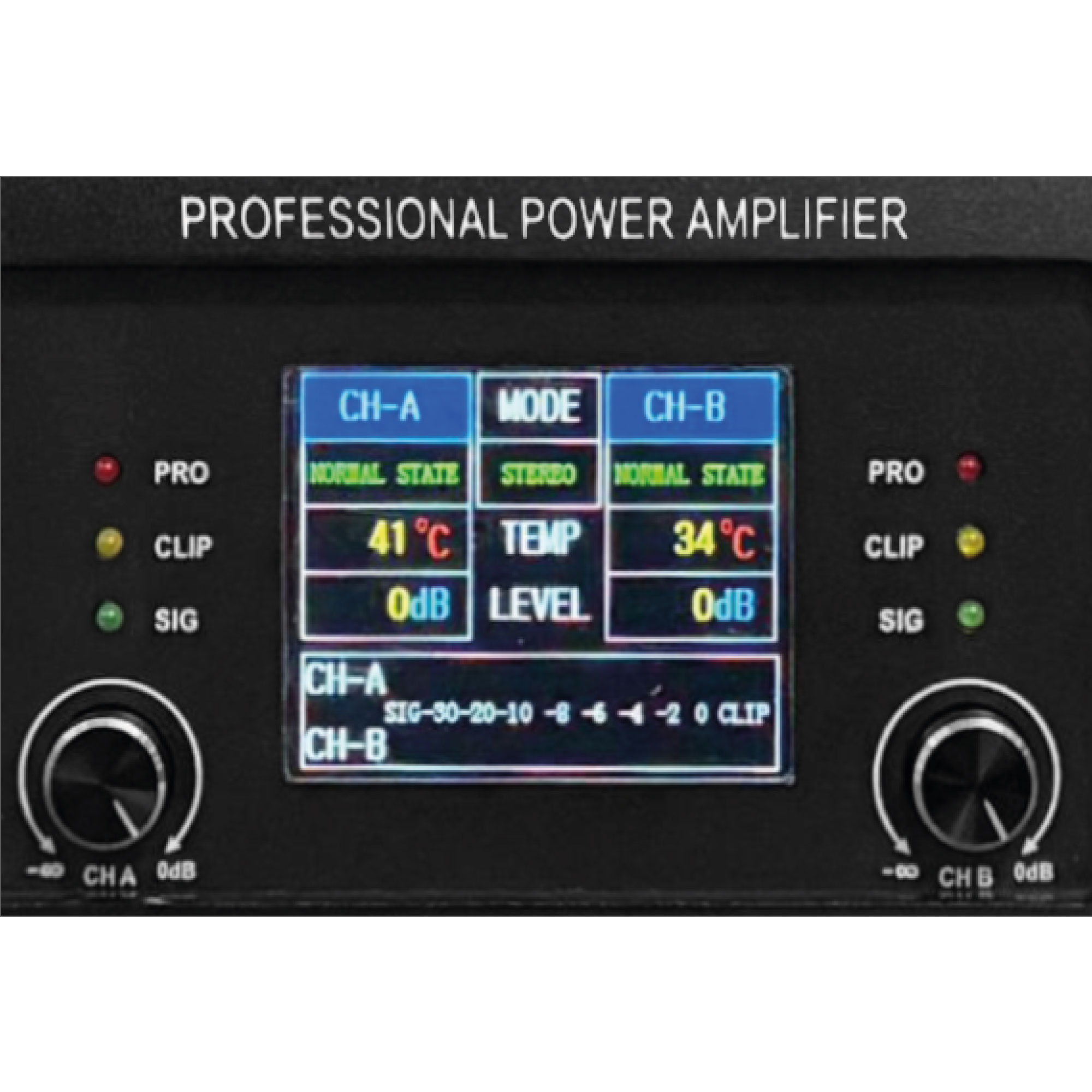

| LCD Display | Yes |
| Protection Function | Clipping pressure limit, overheat protection, short circuit protection, long term output power limit, DC protection |
| Ground Switch | Yes |
| Switching Mode | Bridge, Parallel & Stereo |
| Input Sensitivity Switch | 0db/1V |
| Ventilation Fan | Yes |
| Low Cut VR at Front Panel | Yes |
| Crossover VR at Front Panel | Yes |
| Phase VR at Front Panel | N/A |
| Output Power | 2x600W 8Ω 2x945W 4Ω |
|---|---|
| Bridge Output Power (RMS) | 1600W 8Ω |
| Frequency Response | 20Hz-20kHz, ±0.15dB |
| Signal to Noise Ratio | >105 dB |
| Total Harmonic Distortion | >0.01% |
| Damping Factor | >200@8Ω |
| Crosstalk | >70dB@8Ω 1KHz |
| Slew Rate | >20V/ us |
| Input Sensitivity | >20V/ us 0db/1V |
| Input Impedance | 20kΩ |
| Voltage Gain (8Ω) | 37.2dB |
| Output Circuitry | Class A&B |
| Air Cooling Direction | Air flow from rear to front |
| AC Input | 240V 50/60Hz |
| Panel Indicator | N/A |
| Front Panel Function | Power switch, volume control |

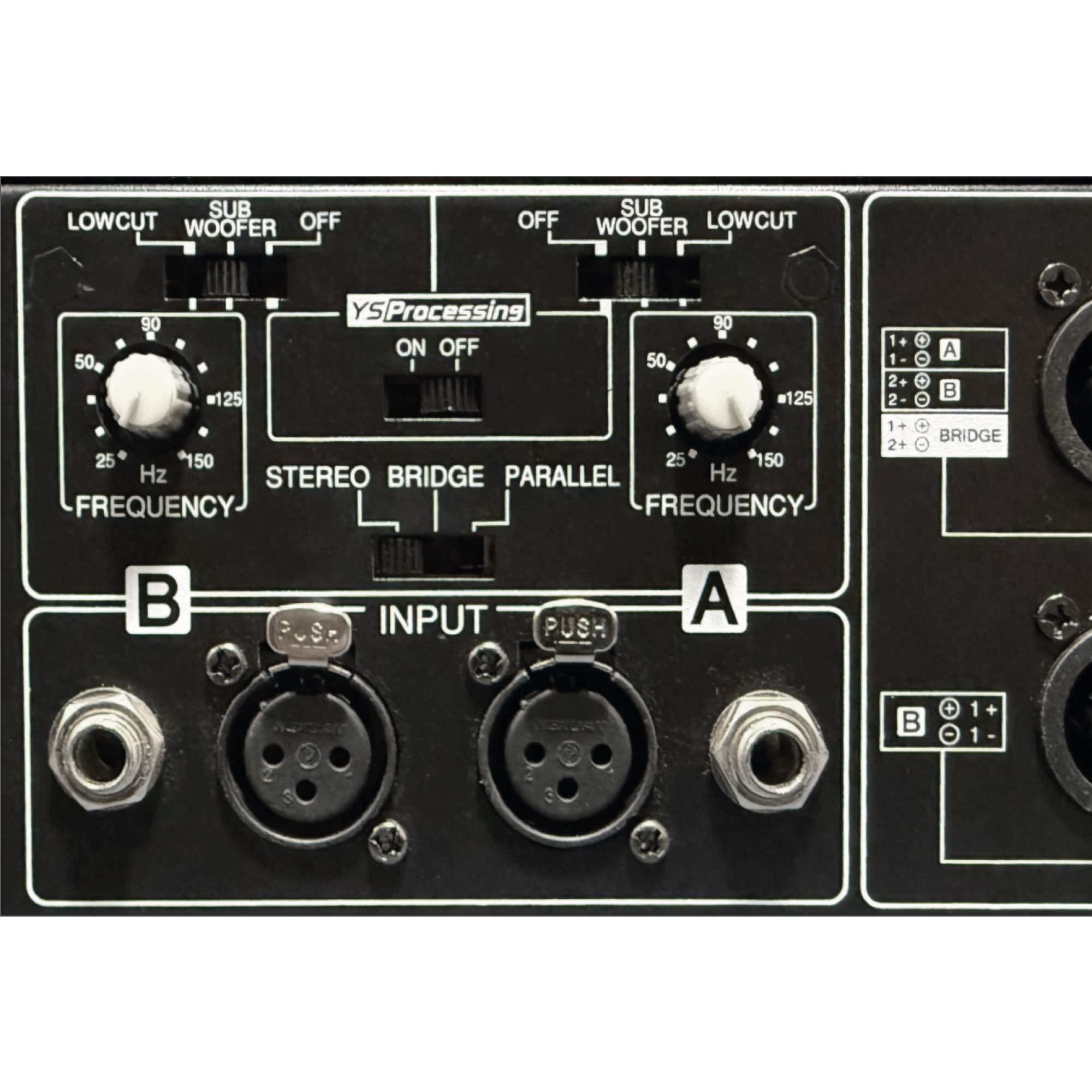

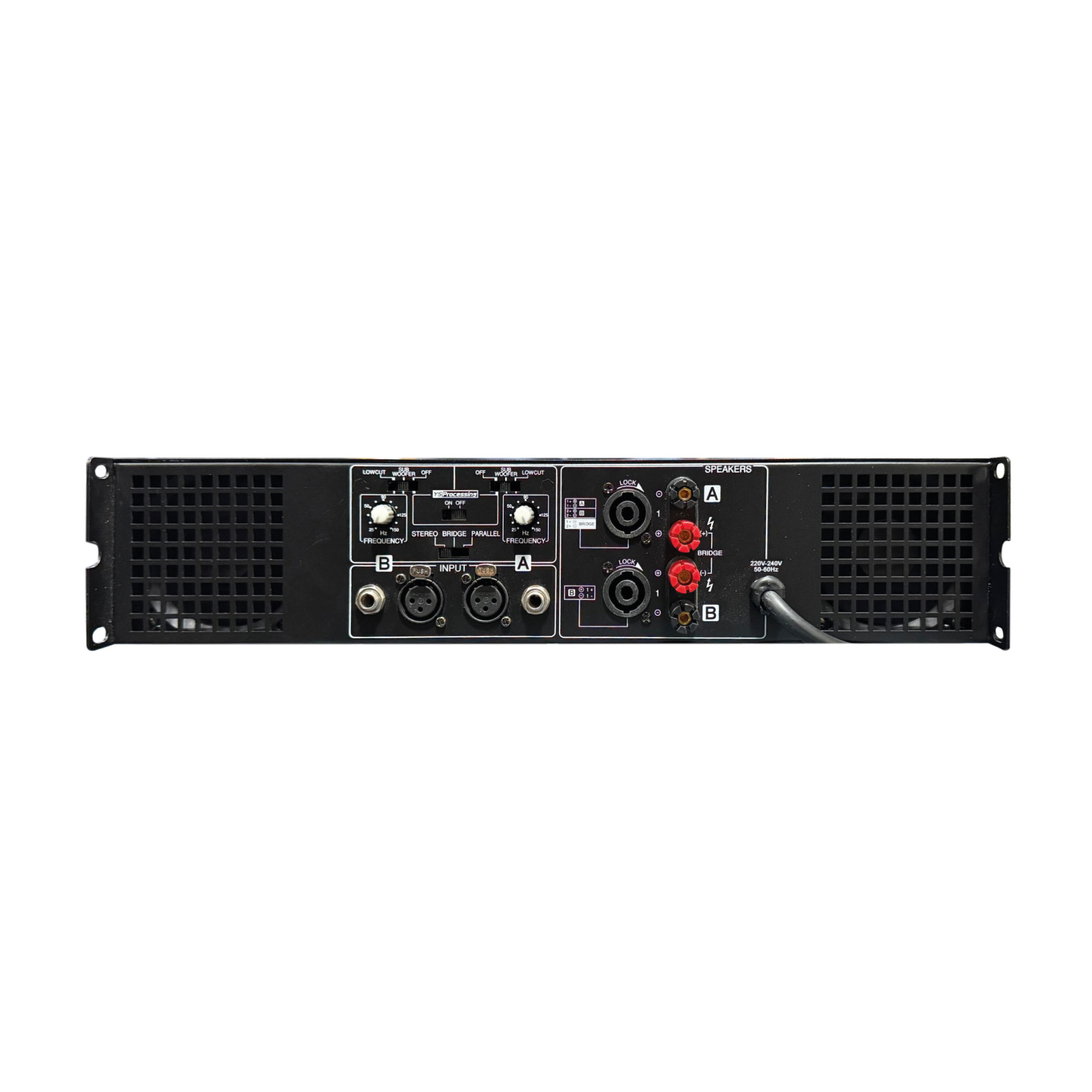

| Back Panel Function | Built-in Crossover Control (Lowcut, Subwoofer, Off), Mode Switch |
| Mode Selection | Bridge, Parallel & Stereo |
| Input Connectors | XLR plug connector |

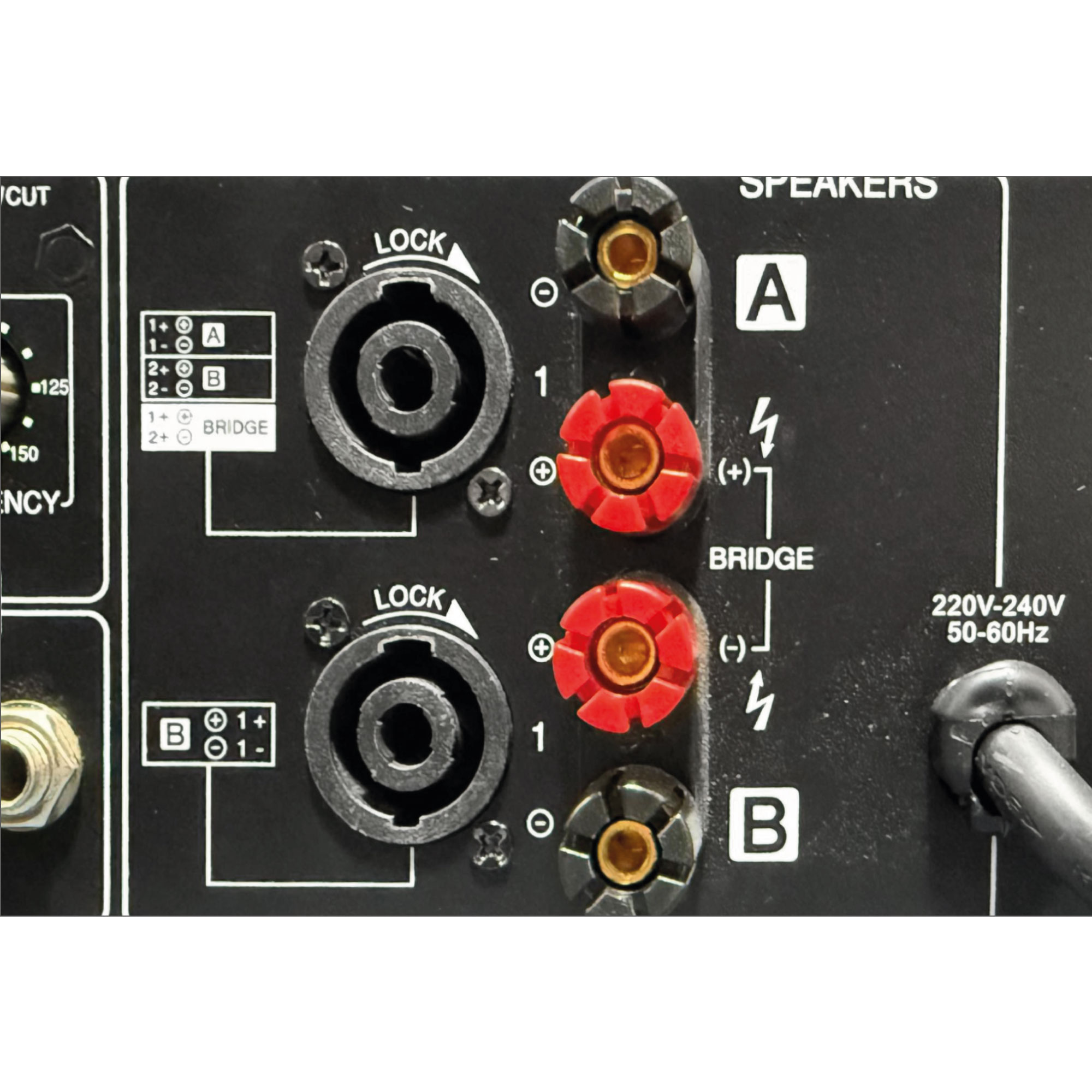

| Output Connectors | Banana plug and speakon plug connector |
| Product Dimension (W x H x D) | 430mm x 88mm x 480mm |
| Packing Dimension (W x H x D) | 597mm x 135mm x 570mm |
| Net Weight / Gross Weight | 20.0kg/21.0kg |
| Set Per Carton | 1 set per carton |
