| Mixer Type | 10-channel |
|---|---|
| Digital Signal Processor (DSP) | Yes |
| Bluetooth Function | Yes |
| USB Input with MP3 Playback | Yes |
| USB Recording Function | Yes |
| Aluminium Side Panel | Yes |
| Built-in Flight Case | N/A |
| Built-in Layer Servo Fan | N/A |
| Rack Mounted | Rack Mount Ready, But Bracket Not Included |

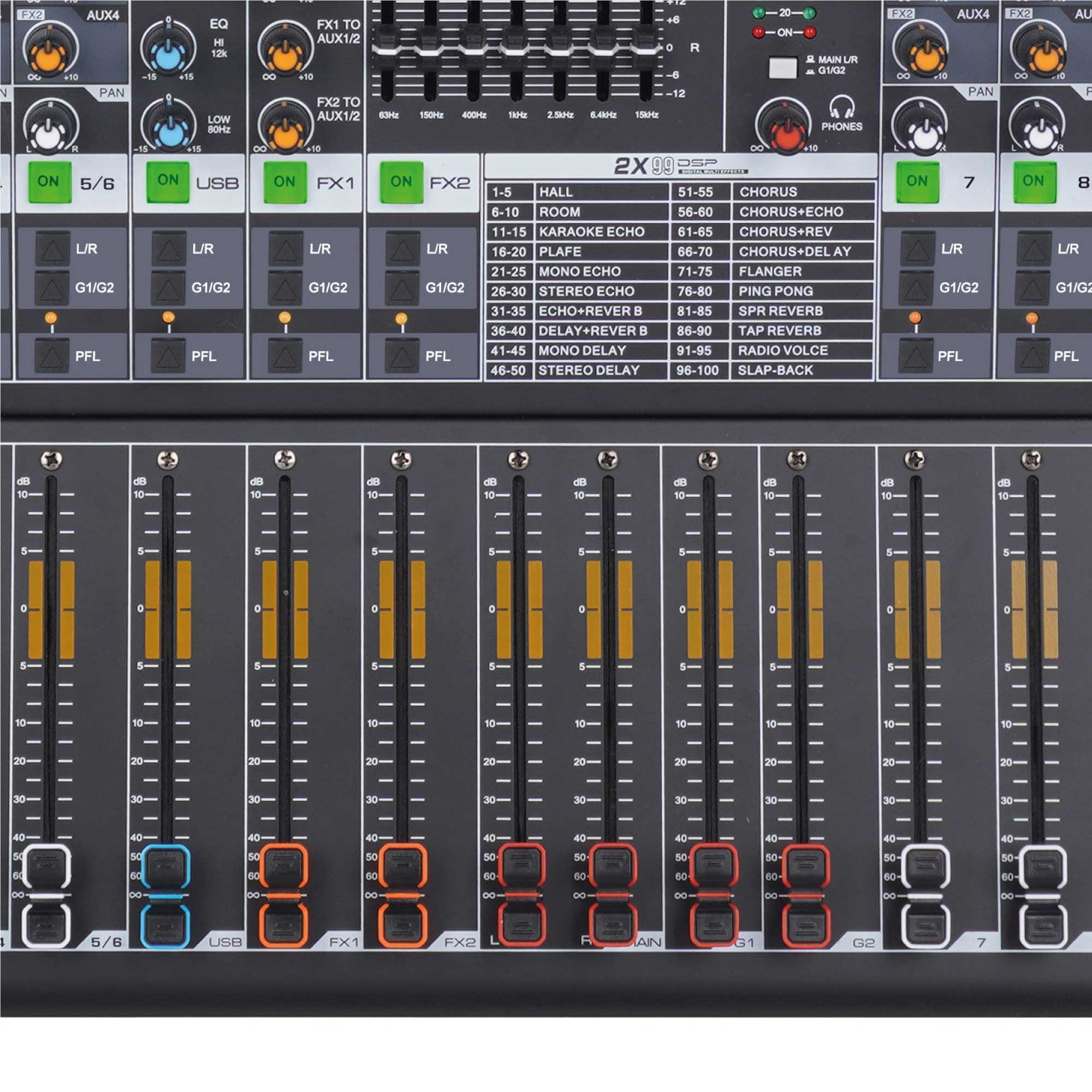

| Digital Signal Processor (DSP) | 2x99 DSP alternative selections |
|---|---|

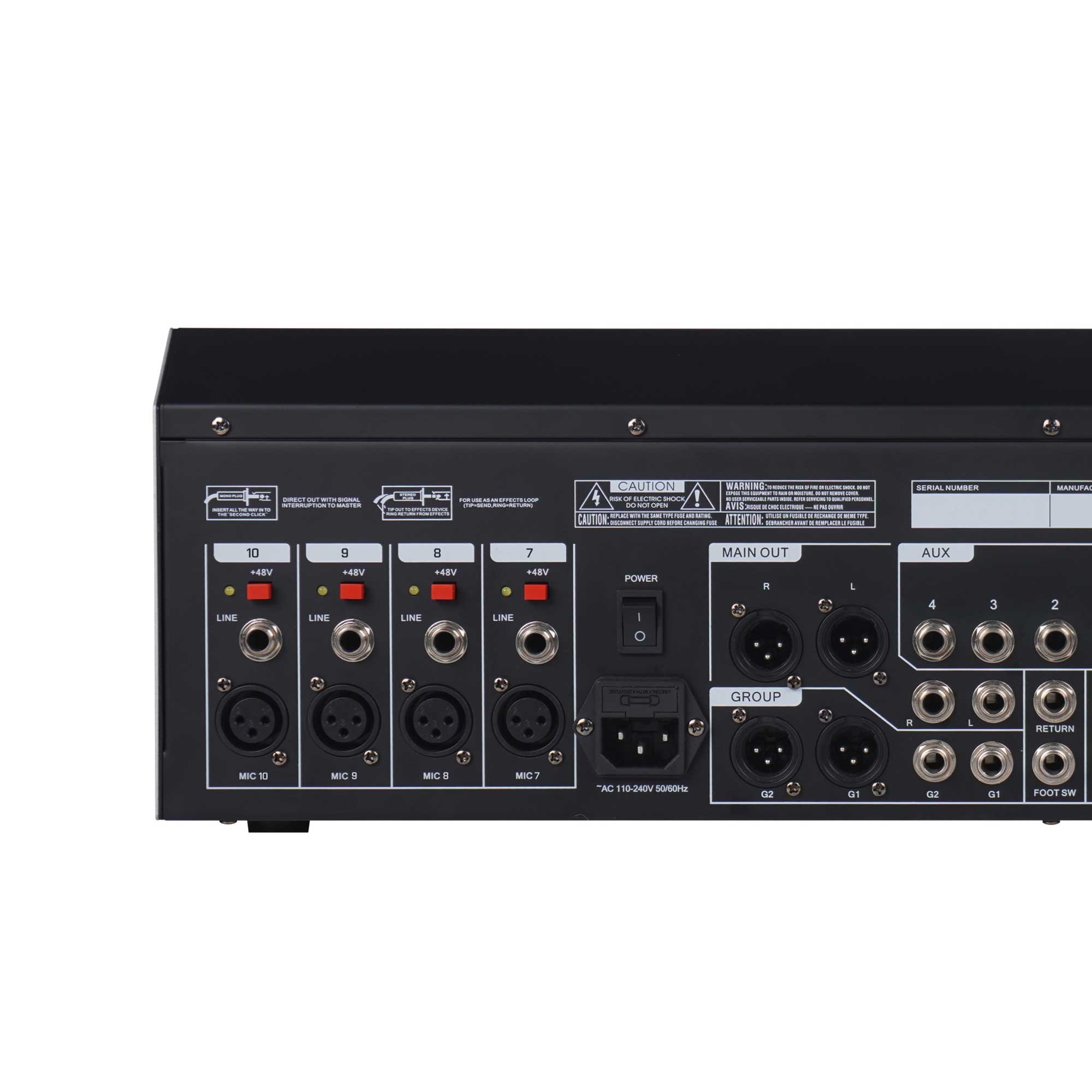

| Balanced Mono Mic / Line Channel | 10 balanced mono mic / line channel for highest signal integrity |
| TAPE / AUX Input | 1 TAPE input (L/R) RCA connector |
| Channels Section | Gain, High, Mid & Frequency, Low, Aux 1, Aux 2, Aux 3(FX), Aux 4(FX), Pan |
| Inserts | N/A |
| Ultra-Musical Band EQ Channel | Ultra-musical 3-band EQ channel on all mono channel |
| Frequency Control On Mono Channel | Yes, adjust frequency through mid EQ control |
| 80Hz High Pass Filter | Yes, to eliminate stage rumbling |
| Peak LED Indicator | Yes, Peak/ Overload (OL) LED indicator on all mono channel |
| 48V Phantom Power | Yes, for ultra low noise discrete mic pre-amps with +48V phantom power for each individual channel except channel with only mono put |
| Segment Bargraph Meters | High accuracy 10 segment bargraph meters for main L/R output |
| Volume Control | 100mm fidelity fader |
| Stereo Graphic Equalizer | 2 x 7 band graphic EQ provide flexible sound-tailoring & feedback control |
| Monitor Out | N/A |
| Phone Jack | N/A |
| Phone & Monitor Level Control | Single volume control |

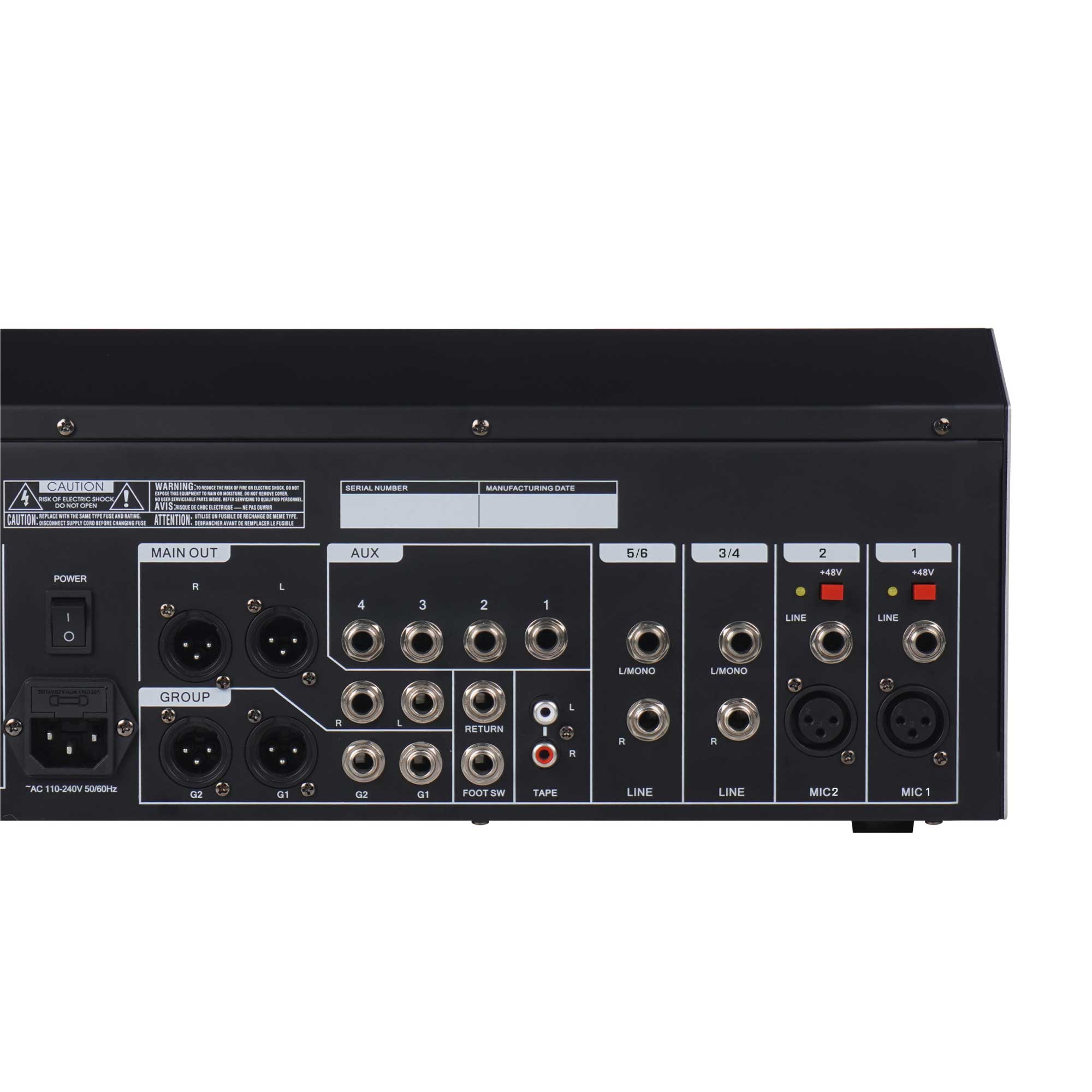

| Master Ouput | 2 channel master output (L/R) with XLR & 1/4” mono jack outputs |
| Group Output | 2 channel group output |
| AUX Send & AUX Return | 4 AUX send & 1 AUX return for external effects and monitoring |
| Record Out | 1-TAPE out (L/R) jack to deliver the main program signal to external recorder |
| Frequency Response | 20Hz - 20kHz |
| Product Dimension (W x H x D) | 460x170x510mm |
| Packing Dimension (W x H x D) | 532x248x593mm |
| Weight | 4.0kg |
| Set per Carton | 1set |
